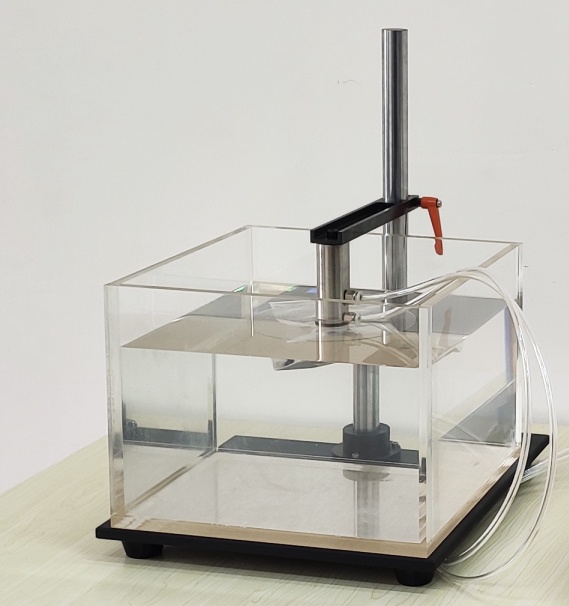

Professional packaging testing instrument manufactured by KHT Instrument. Precision-engineered for quality control laboratories and production environments.
| Parameter | Value |
|---|---|
| Test Range | 0~600 KPa/ 0~87 psi(standard)0~1600KPa/ 0~232 psi(customizable) |
| Resolution | 0.1 KPa / 0.01 psi |
| Pressure Accuracy | ±0.25%FS |

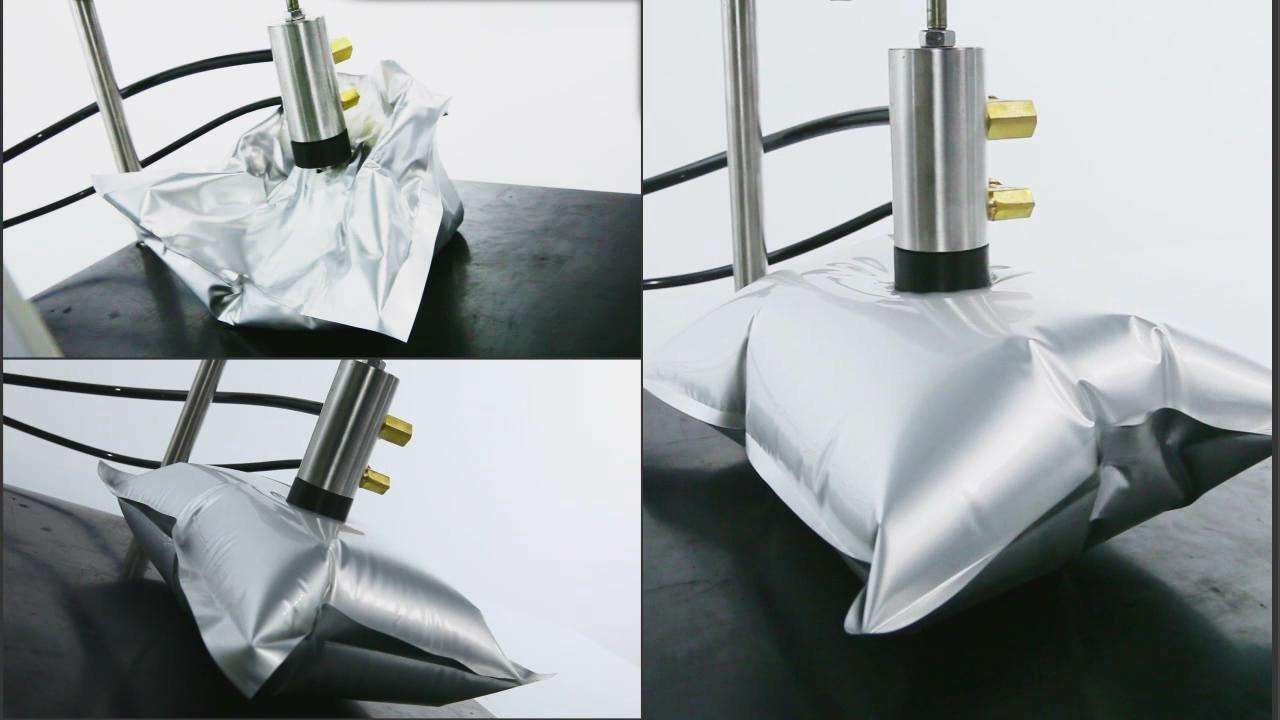

| Inflation Head | Φ10 mm (standard)Φ4 mm, Φ1.6 mm (optional) |
| Inflation Flow | 0.01~10L/min |
| Hold Time | 0.1s~999999.9s |
| Gas Source | Air (user-supplied) |
| Gas Source Pressure | 0.6MPa ~0.7MPa(87psi~101psi) |
| Gas Source Port | Φ8 mm |

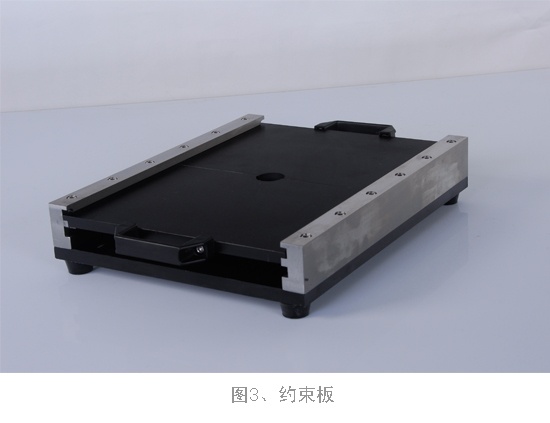

| Constraint Frame Size | 280(L)×380(B)×380(H)mm |
| Main Unit Dimensions | 400(L)×400(B)×240(H)mm |
| Power Supply | 220VAC±10% 50Hz / 110VAC±10% 60Hz two options |
| Net Weight | approx. 18KG |
