Professional packaging testing instrument manufactured by KHT Instrument. Precision-engineered for quality control laboratories and production environments.

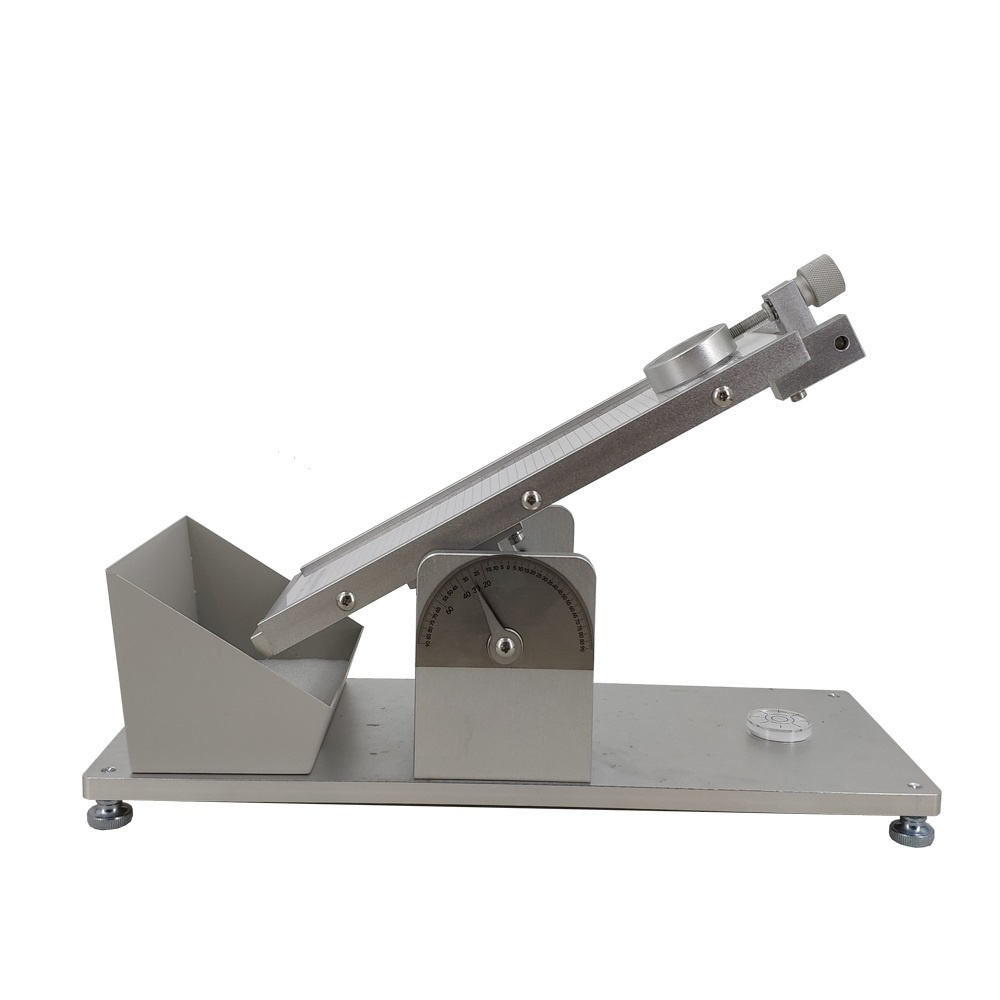

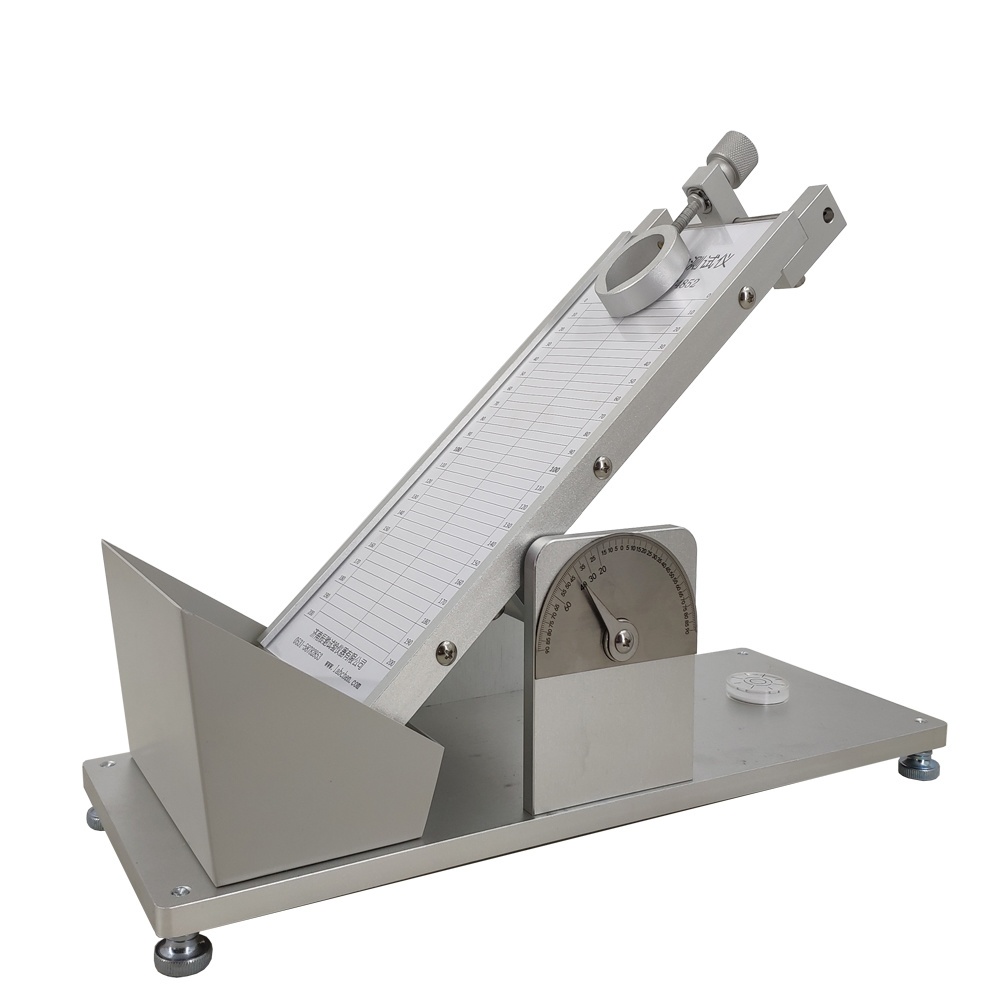

The CNY-1 Initial Tack Tester from KHT Instrument is engineered for reliable and repeatable testing of packaging materials. Featuring a 7-inch touchscreen controller and high-precision sensors, it delivers accurate measurements for quality assurance laboratories and production environments.
This instrument supports multiple test modes and complies with relevant ASTM, ISO, and Chinese national standards. The microcomputer-controlled stepper motor drive system ensures smooth operation with speeds adjustable from 0.1 to 500 mm/min, providing flexibility for different test requirements.
Built with a robust ball-screw mechanism and dual linear bearing guides, the CNY-1 offers excellent mechanical stability and long service life. Standard accessories include test fixtures, a thermal printer for on-site reporting, and optional PC software for advanced data analysis.
| Parameter | Value |
|---|---|
| Test Method | Inclined ball method (Steel ball rolling on adhesive surface) |
| Adjustable Tilt | 0° - 40° |
| Platform Width | 120 mm |
| Test Area Width | 80 mm |
| Standard Steel Ball | 1/32 inch - 1 inch |
| Steel Ball Material | GCr15 bearing steel (per GB/T 308 grade 40+) |
| Frame Material | Aluminum profile |
| Dimensions | 380(L) × 150(W) × 180(H) mm |
| Weight | 5 kg |
| Standards | GB/T 4852, USP 0952 |
| Standard Configuration | Main unit, 1-32 standard steel ball set |
