Professional packaging testing instrument manufactured by KHT Instrument. Precision-engineered for quality control laboratories and production environments.
The CC-SST-2 PET Bottle Cap Seal Tester from KHT Instrument is engineered for reliable and repeatable testing of packaging materials. Featuring a 7-inch touchscreen controller and high-precision sensors, it delivers accurate measurements for quality assurance laboratories and production environments.
This instrument supports multiple test modes and complies with relevant ASTM, ISO, and Chinese national standards. The microcomputer-controlled stepper motor drive system ensures smooth operation with speeds adjustable from 0.1 to 500 mm/min, providing flexibility for different test requirements.

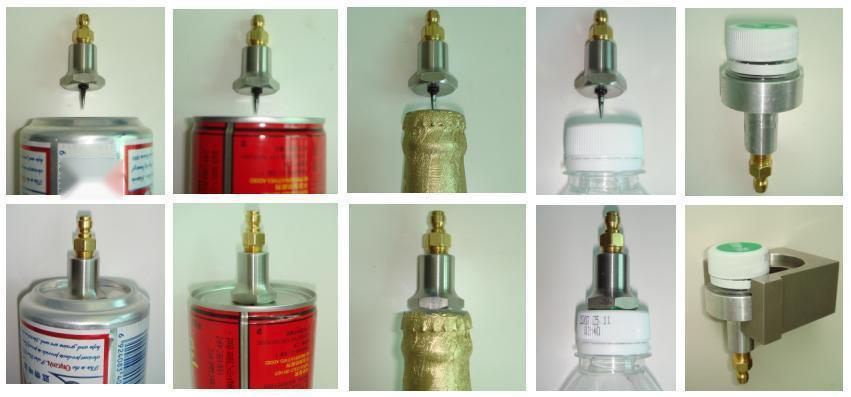

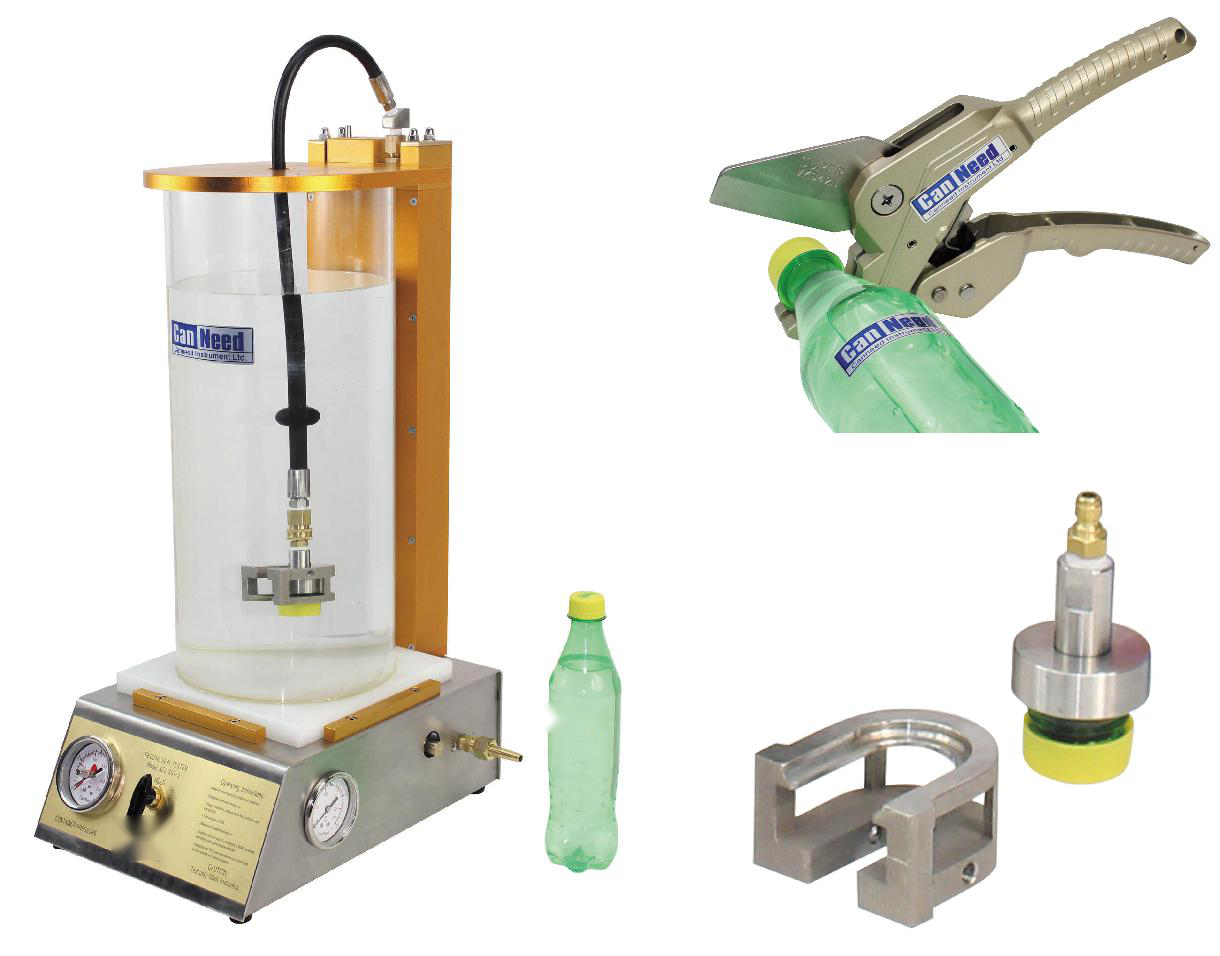

Built with a robust ball-screw mechanism and dual linear bearing guides, the CC-SST-2 offers excellent mechanical stability and long service life. Standard accessories include test fixtures, a thermal printer for on-site reporting, and optional PC software for advanced data analysis.
| Parameter | Value |
|---|---|
| Test Method | Positive pressure (compressed air or CO2) |
| Test Pressure Range | 0 - 1.6 MPa (0 - 16 bar) |
| Pressure Gauge Resolution | 0.05 MPa |
| Pressure Gauge Range | 0 - 1.6 MPa |
| Max Sample Size | 330 × 150 mm (H × Diameter) |
| Pressure Rise Time | 5 - 60 seconds adjustable to 1 MPa |
| Material | Anodized aluminum, stainless steel, plastic |
| Safety Features | Pressure relief valve, safety valve, lid lock pin, exhaust valve |
| Dimensions | 320(L) × 380(W) × 720(H) mm |
| Net Weight | 15 kg |
