Professional packaging testing instrument manufactured by KHT Instrument. Precision-engineered for quality control laboratories and production environments.

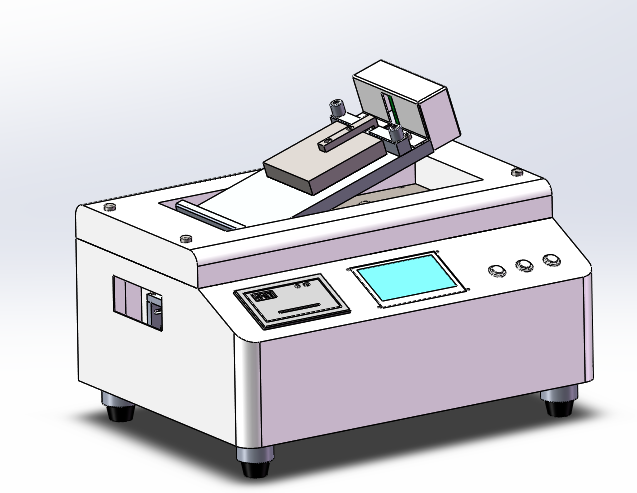

The COF-P01 Inclined Plane COF Tester from KHT Instrument is engineered for reliable and repeatable testing of packaging materials. Featuring a 7-inch touchscreen controller and high-precision sensors, it delivers accurate measurements for quality assurance laboratories and production environments.
This instrument supports multiple test modes and complies with relevant ASTM, ISO, and Chinese national standards. The microcomputer-controlled stepper motor drive system ensures smooth operation with speeds adjustable from 0.1 to 500 mm/min, providing flexibility for different test requirements.
Built with a robust ball-screw mechanism and dual linear bearing guides, the COF-P01 offers excellent mechanical stability and long service life. Standard accessories include test fixtures, a thermal printer for on-site reporting, and optional PC software for advanced data analysis.
| Parameter | Value |
|---|---|
| Angle Range | 0° - 85° |
| Angle Accuracy | 0.01° |
| Angular Speed | 0.1°/s - 10.0°/s |
| Standard Slider | 1300 g (standard); 235 g, 200 g (optional) |
| Operating Environment | Temperature 23±2°C, Humidity 20%RH - 70%RH |
| Dimensions | 330(L) × 455(W) × 250(H) mm |
| Power Supply | 220VAC 50Hz / 120VAC 60Hz |
| Net Weight | 22 kg |
| Standards | ASTM D202, ASTM D4918, TAPPI T815 |
