Professional packaging testing instrument manufactured by KHT Instrument. Precision-engineered for quality control laboratories and production environments.

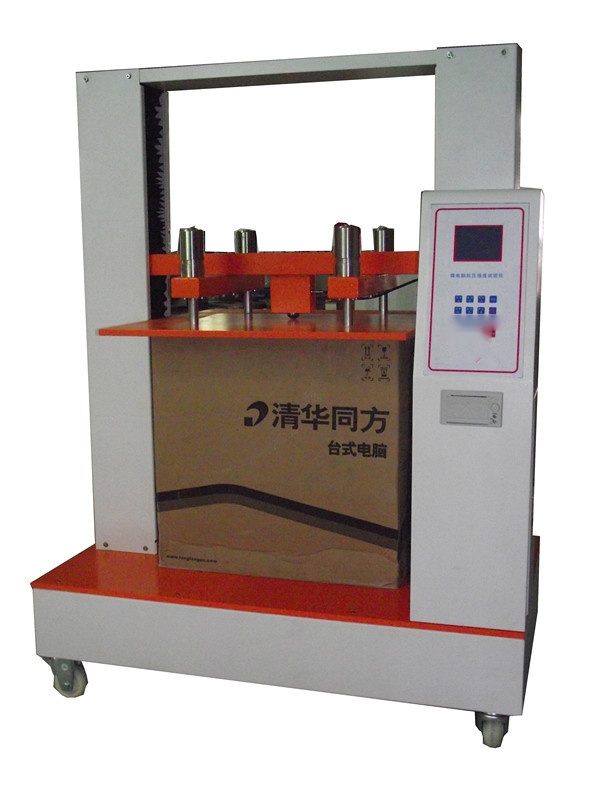

The KY-2 Carton Compression Tester from KHT Instrument is engineered for reliable and repeatable testing of packaging materials. Featuring a 7-inch touchscreen controller and high-precision sensors, it delivers accurate measurements for quality assurance laboratories and production environments.
This instrument supports multiple test modes and complies with relevant ASTM, ISO, and Chinese national standards. The microcomputer-controlled stepper motor drive system ensures smooth operation with speeds adjustable from 0.1 to 500 mm/min, providing flexibility for different test requirements.
Built with a robust ball-screw mechanism and dual linear bearing guides, the KY-2 offers excellent mechanical stability and long service life. Standard accessories include test fixtures, a thermal printer for on-site reporting, and optional PC software for advanced data analysis.
| Parameter | Value |
|---|---|
| Test Force | 500 kg / 1000 kg / 2000 kg (selectable) |
| Control System | AC variable-frequency gear motor |
| Display | AG-2000 force display showing force value and burst value |
| Test Stroke | 600 mm |
| Test Plate Size | 500×600 mm / 500×700 mm / 500×500 mm |
| Test Speed | 12.7 mm/min (return: 12.7 mm/min or 100 mm/min) |
| Stack Function | Auto-stack within preset time |
| Protection | Leakage, overload auto-stop, stroke limit |
| Print Function | Auto report (Chinese): force, average, break ratio, date |
| Dimensions | Approx. 1000 × 500 × 1350 mm |
| Net Weight | 600 kg |
| Standards | GB/T 16491, GB/T 4857.4 |
