Professional packaging testing instrument manufactured by KHT Instrument. Precision-engineered for quality control laboratories and production environments.

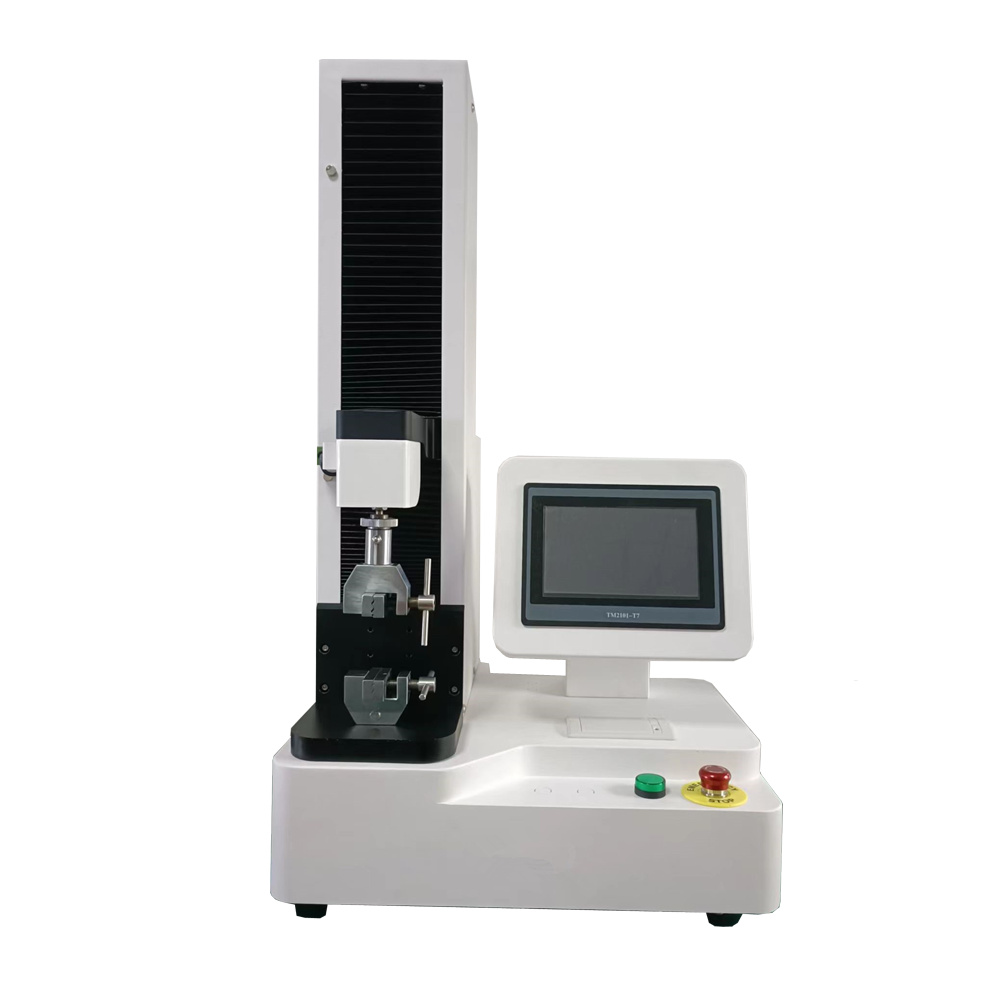

The MED-01 Battery Separator Puncture Tester from KHT Instrument is engineered for reliable and repeatable testing of packaging materials. Featuring a 7-inch touchscreen controller and high-precision sensors, it delivers accurate measurements for quality assurance laboratories and production environments.
This instrument supports multiple test modes and complies with relevant ASTM, ISO, and Chinese national standards. The microcomputer-controlled stepper motor drive system ensures smooth operation with speeds adjustable from 0.1 to 500 mm/min, providing flexibility for different test requirements.
Built with a robust ball-screw mechanism and dual linear bearing guides, the MED-01 offers excellent mechanical stability and long service life. Standard accessories include test fixtures, a thermal printer for on-site reporting, and optional PC software for advanced data analysis.
| Parameter | Value |
|---|---|
| Force Range | 100N / 200N / 300N / 500N (selectable) |
| Force Accuracy | Class 0.5 |
| Test Speed | 1 - 500 mm/min (adjustable) |
| Test Stroke | 400 mm |
| Test Modes | Tensile, peel, opening, puncture, break, piston-mobility |
| Display | Full-graphics LCD with real-time data and curves |
| Communication | USB interface with PC software |
| Protection | Overload, limit, stroke protection; auto-return on completion |
| Print Function | Built-in thermal printer |
| Dimensions | 330(L) × 410(W) × 680(H) mm |
| Power Supply | AC 220V 50Hz |
| Net Weight | 70 kg |
