Professional packaging testing instrument manufactured by KHT Instrument. Precision-engineered for quality control laboratories and production environments.

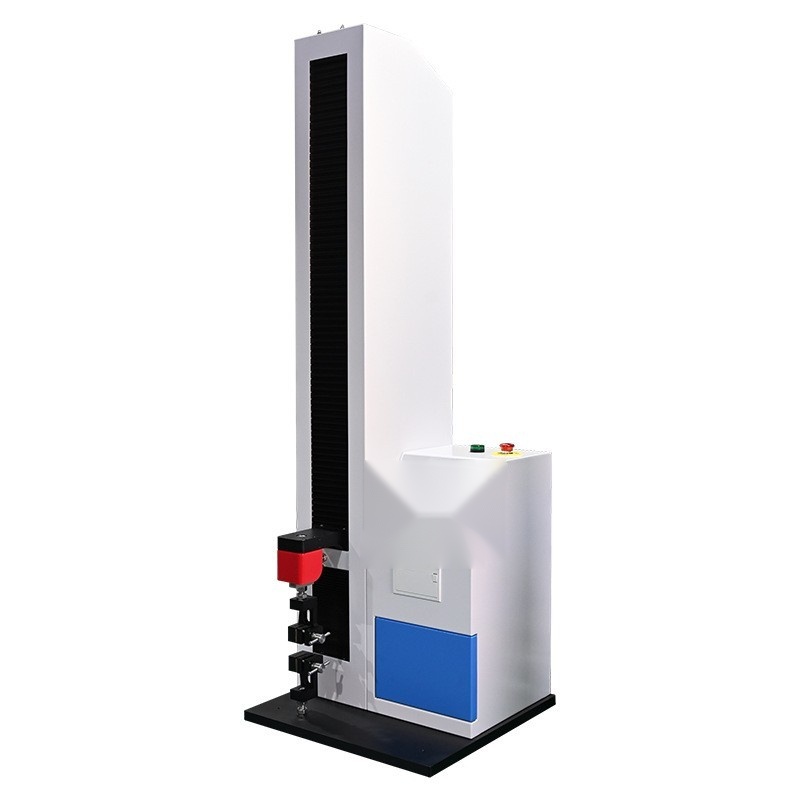

The WDK-01 Paper Tensile Strength Tester from KHT Instrument is engineered for reliable and repeatable testing of packaging materials. Featuring a 7-inch touchscreen controller and high-precision sensors, it delivers accurate measurements for quality assurance laboratories and production environments.
This instrument supports multiple test modes and complies with relevant ASTM, ISO, and Chinese national standards. The microcomputer-controlled stepper motor drive system ensures smooth operation with speeds adjustable from 0.1 to 500 mm/min, providing flexibility for different test requirements.
Built with a robust ball-screw mechanism and dual linear bearing guides, the WDK-01 offers excellent mechanical stability and long service life. Standard accessories include test fixtures, a thermal printer for on-site reporting, and optional PC software for advanced data analysis.
| Parameter | Value |
|---|---|
| Model | WDK-01 |
| Power Voltage | AC220V 50HZ |
| Test Force | 30, 50, 100, 200, 300, 500, 1000N optional |
| Accuracy Class | ±1% |
| Control Mode | Microcomputer-controlled, fully automatic |
| Display | 7-inch true-color touchscreen LCD |
| Force Range | 500N (standard) |
| Measurement Range | 2%-100% of max test force |
| Force Accuracy | Better than ±1% of reading±1% |
| Force Resolution | 0.01N |
| Displacement Resolution | 0.001 mm |
| Deformation Accuracy | Better than ±1% |
| Motor Power | Approx. 80W |
| Speed Range | 0.1---500mm/min |
| Tensile Space | 400 mm(customizable on request) |
| Compression Space | 400 mm(customizable on request) |
| Main Unit Size | 450*250*900 mm |
| Net Weight | 30KG |
