Professional packaging testing instrument manufactured by KHT Instrument. Precision-engineered for quality control laboratories and production environments.
| Parameter | Value |
|---|---|

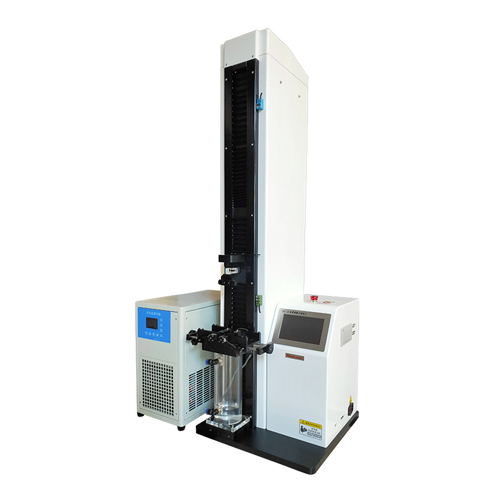

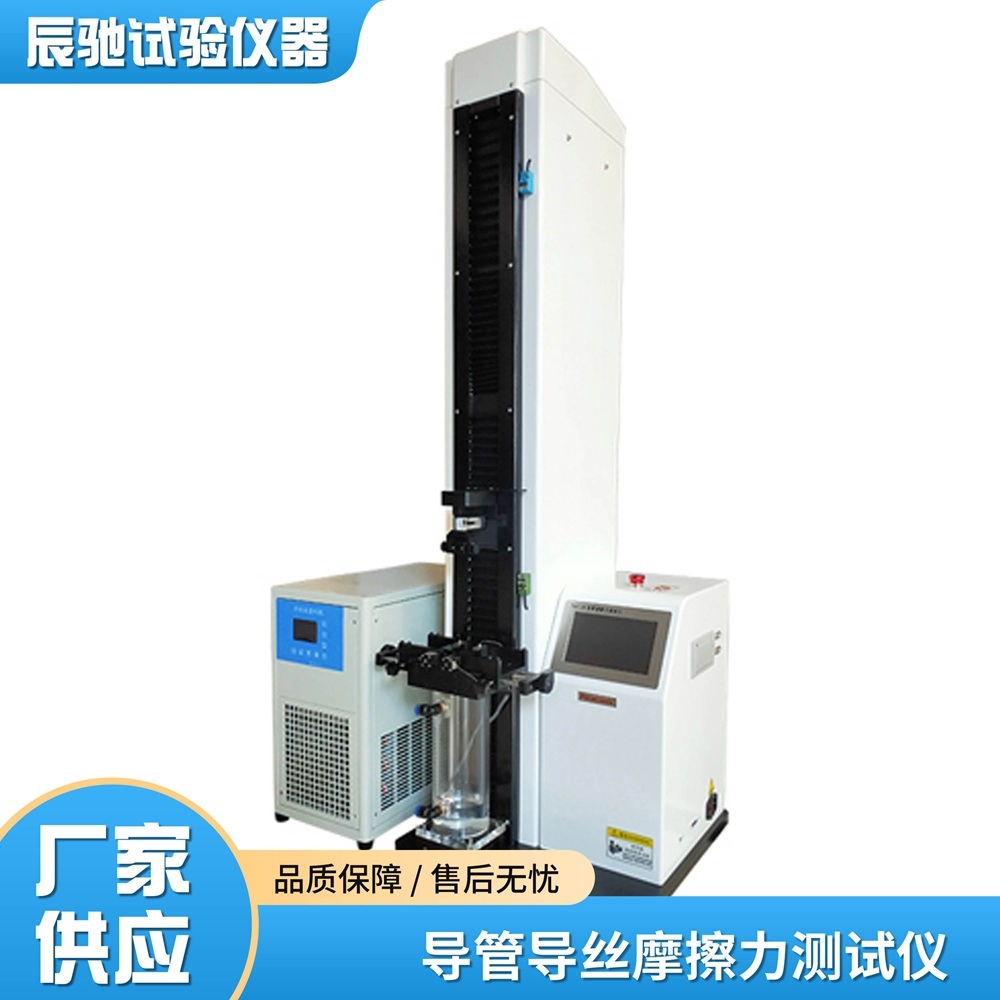

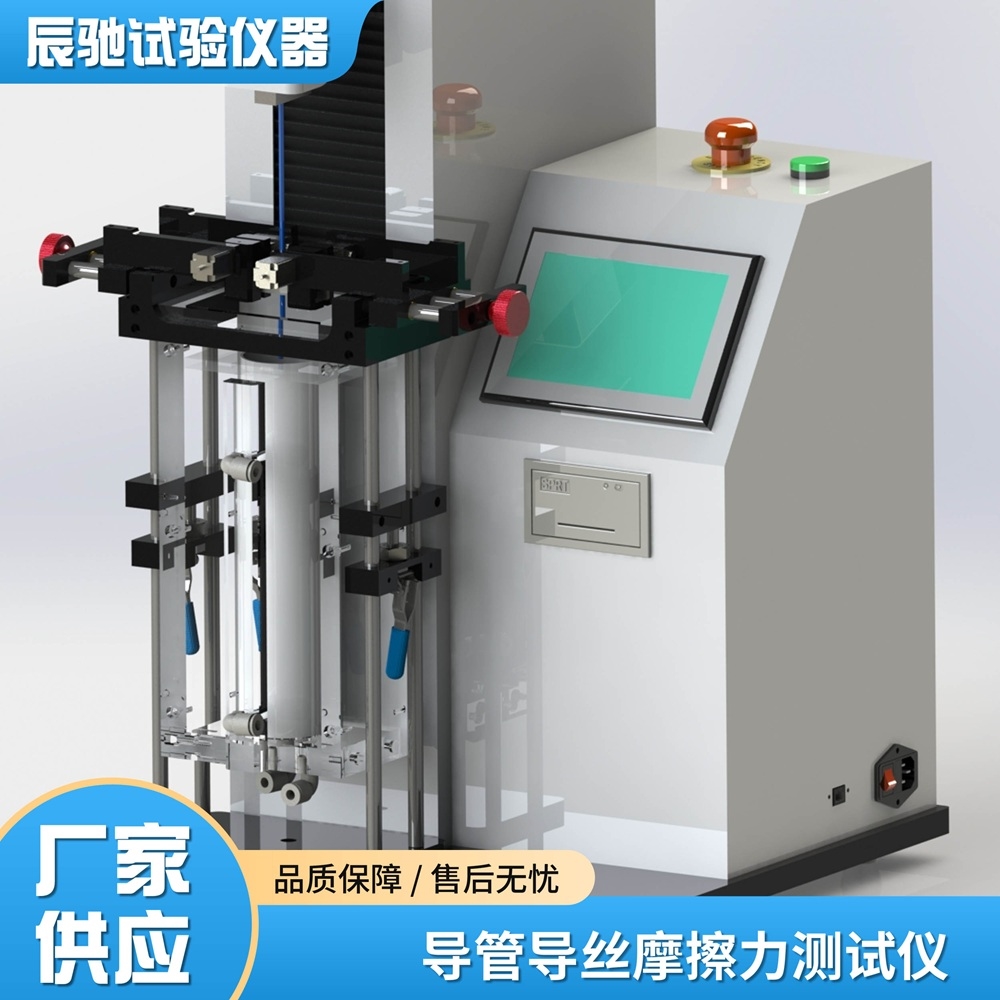

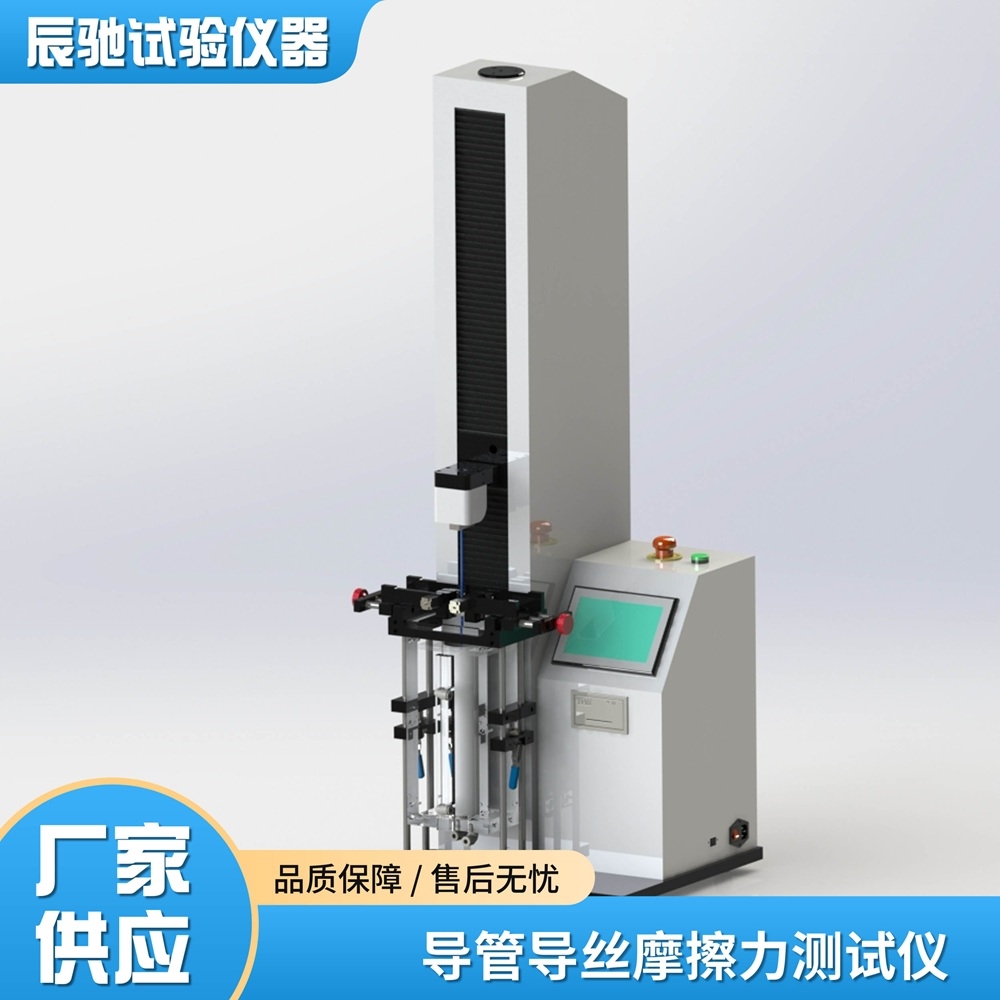

| Model | XLW-DG Catheter Guidewire Friction Tester |
| Power Supply | AC220V 50HZ |
| Measurement Range | 10N, 50N, 100N, 300N(select one or more) |
| Measurement Units | N, gf, kgf, lb |
| Measurement Accuracy | ≤0.5 class |
| Speed Accuracy | 1~10mm/min±1%，10~600mm/min±0.5% |
| Displacement Resolution | 0.001mm |
| Min Resolution | 0.001N |
| Test Stroke | 900mm |
| Clamping Force | 0-10N |
| Constant Temperature Bath Flow | 10L/min |
| Bath Temperature Range | -10-80℃ |
| Bath Temperature Accuracy | ±0.1℃ |
| Test Speed | 1-600mm/minstepless speed control |
| Dimensions | 480(L)X560(B)X1430(H)MM |
| Weight | approx. 90KG |
