Professional packaging testing instrument manufactured by KHT Instrument. Precision-engineered for quality control laboratories and production environments.

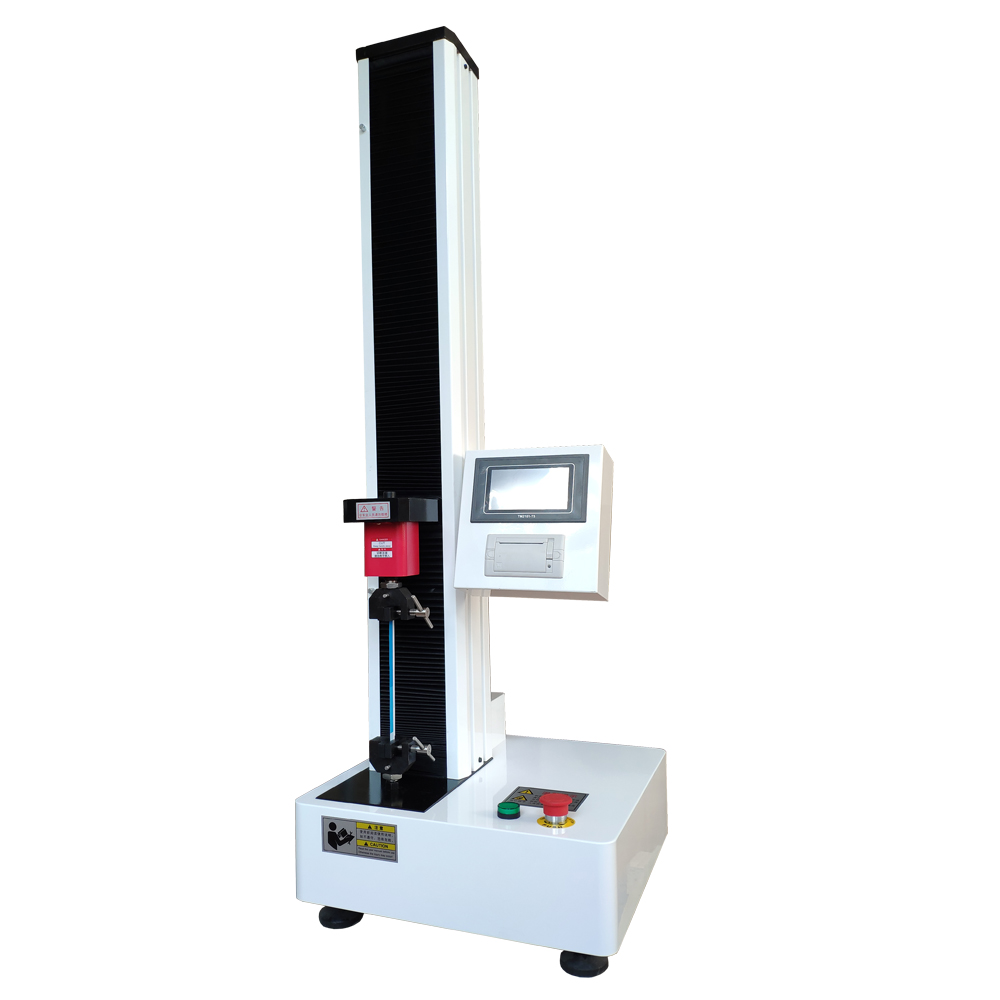

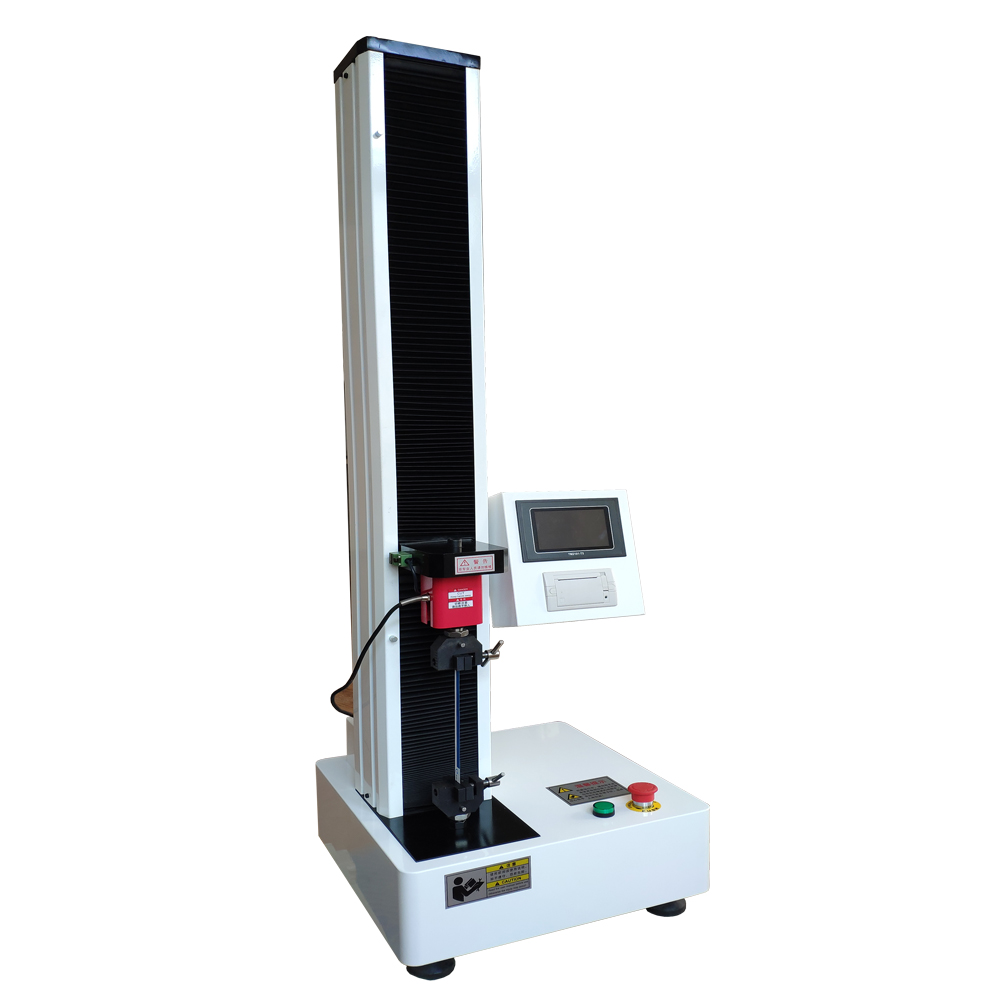

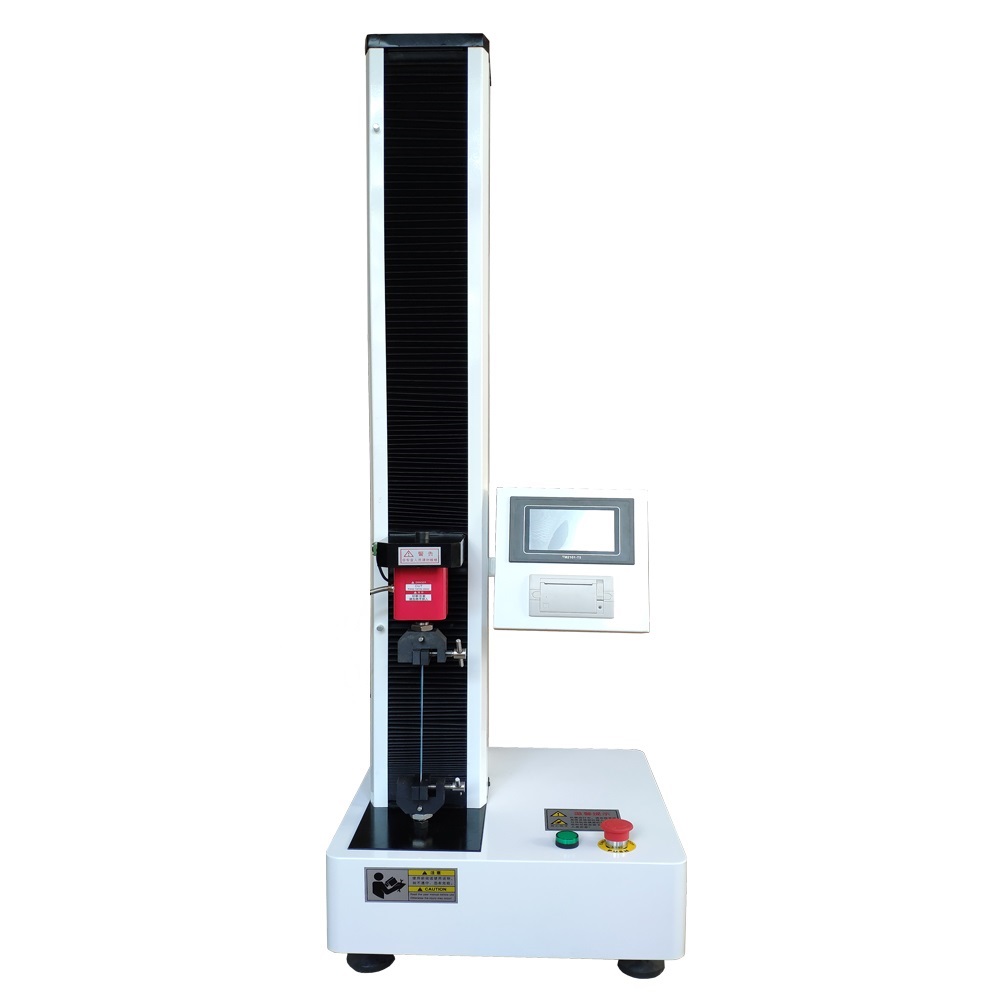

The WDL-01 Intelligent Tensile Tester from KHT Instrument is engineered for reliable and repeatable testing of packaging materials. Featuring a 7-inch touchscreen controller and high-precision sensors, it delivers accurate measurements for quality assurance laboratories and production environments.
This instrument supports multiple test modes and complies with relevant ASTM, ISO, and Chinese national standards. The microcomputer-controlled stepper motor drive system ensures smooth operation with speeds adjustable from 0.1 to 500 mm/min, providing flexibility for different test requirements.
Built with a robust ball-screw mechanism and dual linear bearing guides, the WDL-01 offers excellent mechanical stability and long service life. Standard accessories include test fixtures, a thermal printer for on-site reporting, and optional PC software for advanced data analysis.
| Parameter | Value |
|---|---|
| Model | WDL-01 |
| Power Voltage | AC220V 50HZ |
| Test Force | 50, 100, 200, 300, 500, 1000Noptional |
| Accuracy Class | ±1% |
| Control Mode | Microcomputer-controlled, fully automatic |
| Display | 7 |
| Data Output | Built-in thermal printer; optional PC output |
| Force Range | standard500N |
| Measurement Range | 2%—100% of test force |
| Force Accuracy | Better than ±1% of reading |
| Force Resolution | 0.01N |
| Displacement Resolution | 0.001mm |
| Deformation Accuracy | Better than ±1% |
| Drive System | Stepper motor with timing belt drive, |
| Motor Power | approx. 80W |
| Speed Range | 0.1---500mm/min |
| Tensile Space | 400mm (customizable on request) |
| Compression Space | 400mm (customizable on request) |
| Main Unit Size | 450*250*900mm |
| Test Protection | Force overload protection, stroke limit protection |
| Net Weight | 30KG |
| Standard Configuration | Main unit, standard fixtures, thermal printer, power cable |
